32mm (1 1/4")
KDP 32
Price range: $3,260.00 through $3,460.00
Description
KDP Diaphragm Pumps | KDP32

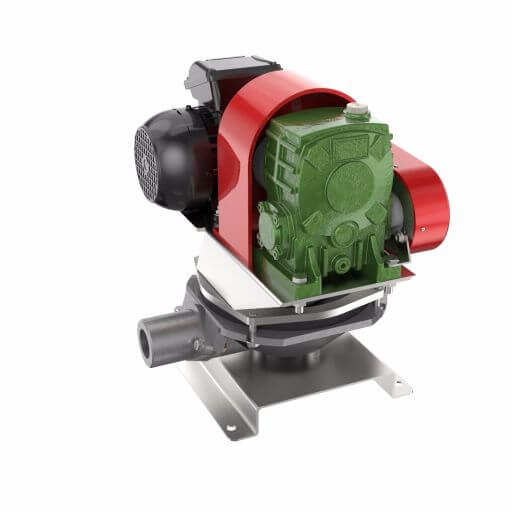

The KDP32-200 is a mechanical diaphragm pump that uses a heavy-duty gearbox coupled to an eccentric block to actuate the diaphragm. It is belt driven by pulleys which enables it to use a variety of drive options.
With its heavy-duty construction ability to run dry and self-prime, the KDP pump is suitable for a wide range of applications including dewatering, transfer, oil skimming & oil/water separation.
Additional information
| Weight | 30 kg |
|---|---|
| Dimensions | 50 × 50 × 50 cm |
| Brand | |
| Model No. | KDP 32 |
| Motor Type | 240 Volt, 415 Volt, 415 Volt EX E, 415 Volt EX D |
| Motor Size | 0.37 kW |
| Pump Size / Connections | 32mm (1 1/4") |
| Nominal Flow Rate | 2000 LPH |
| Suction Lift | 7.5m |
| Discharge Head | 6.0m |
| Solid Size | 20mm |
