KDP Diaphragm Pumps | KDP50

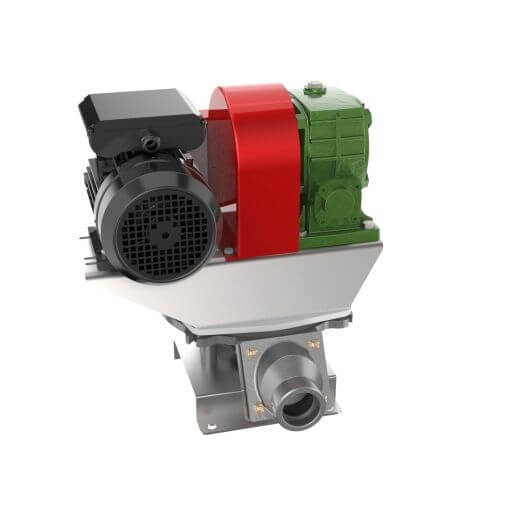

The KDP 50 is a mechanical diaphragm pump that uses a heavy-duty gearbox coupled to an eccentric block to actuate the diaphragm. It is belt driven by pulleys which enables it to use a variety of drive options.
With its heavy-duty construction ability to run dry and self-prime, the KDP pump is suitable for a wide range of applications including dewatering, transfer, oil skimming & oil/water separation.
|Dimensions||60 x 60 x 60 cm|
Diesel, Petrol, 240 Volt, 415 Volt, 415 Volt EX E, 415 Volt EX D
|Pump Size / Connections||
50 mm (2 inch)
|Nominal Flow Rate||
Applications & Features
Applications: – Dewatering excavation – Raw sewage – Pool maintenance and construction – Waste treatment plants – Oil Skimming – Bore desludging – Oil/Water separators – Machine sumps – Priming large centrifugal pumps – Industrial Wastes – Liquid manure – Septic tank cleaning – Drum emptying – Abattoirs – Poultry processing and Spillage mop up. Features: – Suction lifts to 7.5m – Rapid self-priming – Will run dry without damage – Heavy duty – Will operate on snor – Will handle abrasive liquids – Will pass solids up to 80% port size – Compact construction – Special electric motor enclosures as an option
